Umbrella Drainage System


Umbrella/Drainage System - Mined Tunnel

For partial waterproofing the most common tunnel application is the Umbrella System/Drainage System. This system is specifically designed for tunnels with dripping water conditions.

Examples of Application:

  • Road Tunnels
  • Railway Tunnels

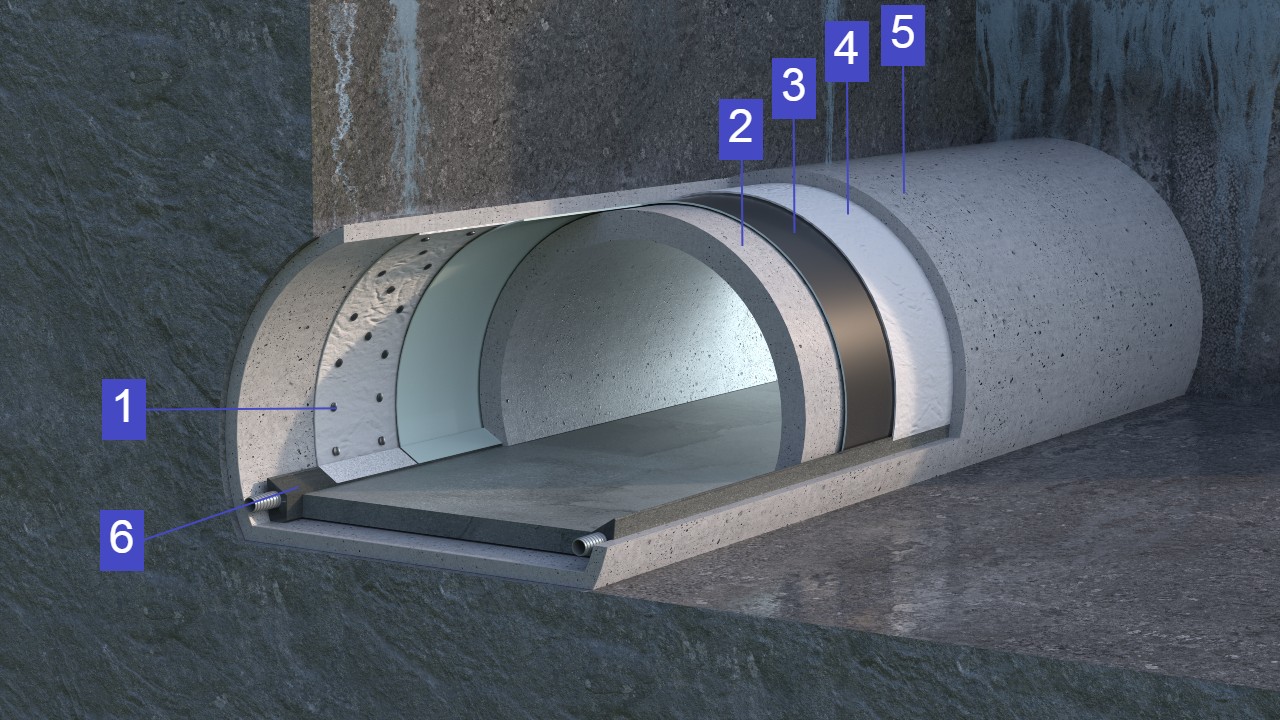

System description:

  • Protan Disc
  • In-Situ concrete
  • Protan InfraPlan Tunnel Membrane
  • Protan Geo (Geotextile)
  • Shotcrete
  • Protan Drain (Drainage Profile)


Protan recommends to use InfraPlan P20, P22 or P22+ for drainage applications.
